XBD-L立式消防泵
浏览次数：
XBD立式消防泵系立式管道离心泵产品改装而成，供输送不含固体颗粒的清水及物理化学性质类似于水的液体之用。立式消防泵主要用于消防系统增压送水，也可用于厂矿给排水。输送液体的流量范围为5～80L/S，压力范围为0.2～2.25Mpa，配套功率范围为1.5～200KW，口径范围为φ50～φ200mm。
XBD立式消防泵产品用途:XBD消防泵主要用于消防系统管道增压送水。该消防泵可适用于工业和城市给排水、高层建筑夺压送水、远距离送水、采暖、浴室、锅炉冷暖水循环增压空调制冷系统送水及设备配套等场合。

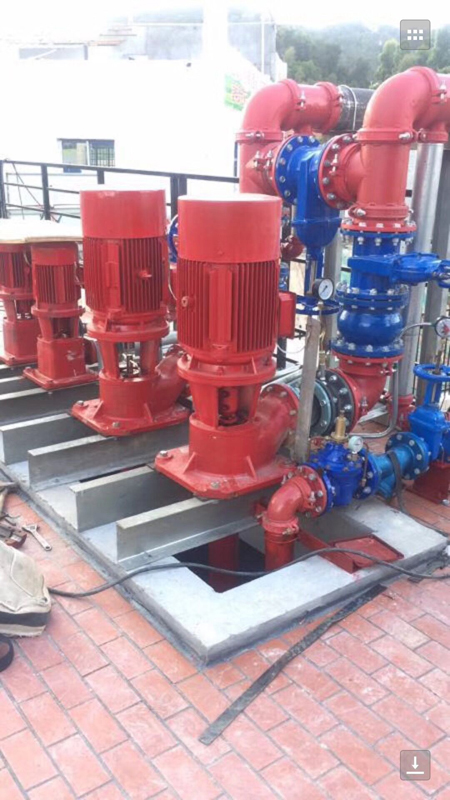

.jpg)
龙事达电动机消防泵组主要性能参数表一
|
序号 |
规格型号 |
流量(L/s) |
压力(MPa) |
转速(r/min) |
功率(kW) |
|
1 |
XBD4.0/5GJ-LSD |
5L/S |
0.4Mpa |
2940r/min |
5.5kw |
|
2 |
XBD5.5/5GJ-LSD |
5L/S |
0.55Mpa |
2940r/min |
7.5kw |
|
3 |
XBD6.7/5GJ-LSD |
5L/S |
0.67Mpa |
2940r/min |
7.5kw |
|
4 |
XBD7.2/5GJ-LSD |
5L/S |
0.72Mpa |
2940r/min |
7.5kw |
|
5 |
XBD8.0/5GJ-LSD |
5L/S |
0.8Mpa |
2940r/min |
11kw |
|
6 |
XBD9.3/5GJ-LSD |
5L/S |
0.93Mpa |
2940r/min |
11kw |
|
7 |
XBD10.5/5GJ-LSD |
5L/S |
1.04Mpa |
2940r/min |
15kw |
|
8 |
XBD4.0/10GJ-LSD |
10L/S |
0.4Mpa |
2940r/min |
7.5kw |
|
9 |
XBD5.0/10GJ-LSD |
10L/S |
0.5Mpa |
2940r/min |
11kw |
|
10 |
XBD6.5/10GJ-LSD |
10L/S |
0.65Mpa |
2940r/min |
15kw |
|
11 |
XBD8.0/10GJ-LSD |
10L/S |
0.8Mpa |
2940r/min |
18.5kw |
|
12 |
XBD9.1/10GJ-LSD |
10L/S |
0.91Mpa |
2940r/min |
18.5kw |
|
13 |
XBD10.5/10GJ-LSD |
10L/S |
1.04Mpa |
2940r/min |
22kw |
|
14 |
XBD3.6/15GJ-LSD |
15L/S |
0.36Mpa |
2940r/min |
11kw |
|
15 |
XBD4.0/15GJ-LSD |
15L/S |
0.40Mpa |
2940r/min |
11kw |
|
16 |
XBD4.8/15GJ-LSD |
15L/S |
0.48Mpa |
2940r/min |
15kw |
|
17 |
XBD5.0/15GJ-LSD |
15L/S |
0.50Mpa |
2940r/min |
15kw |
|
18 |
XBD6.0/15GJ-LSD |
15L/S |
0.60Mpa |
2940r/min |
18.5kw |
|
19 |
XBD7.2/15GJ-LSD |
15L/S |
0.72Mpa |
2940r/min |
22kw |
|
20 |
XBD8.4/15GJ-LSD |
15L/S |
0.84Mpa |
2940r/min |
30kw |
|
21 |
XBD9.6/15GJ-LSD |
15L/S |
0.96Mpa |
2940r/min |
30kw |
|
22 |
XBD10.5/15GJ-LSD |
15L/S |
1.05Mpa |
2940r/min |
30kw |
|
23 |
XBD3.5/20GJ-LSD |
20L/S |
0.35Mpa |
2940r/min |
15kw |
|
24 |
XBD4.6/20GJ-LSD |
20L/S |
0.46Mpa |
2940r/min |
15kw |
|
25 |
XBD5.0/20GJ-LSD |
20L/S |
0.5Mpa |
2940r/min |
18.5kw |
|
26 |
XBD5.8/20GJ-LSD |
20L/S |
0.58Mpa |
2940r/min |
22kw |
|
27 |
XBD6.2/20GJ-LSD |
20L/S |
0.62Mpa |
2940r/min |
22kw |
|
28 |
XBD7.5/20GJ-LSD |
20L/S |
0.75Mpa |
2940r/min |
30kw |
|
29 |
XBD8.5/20GJ-LSD |
20L/S |
0.85Mpa |
2940r/min |
30kw |
|
30 |
XBD9.5/20GJ-LSD |
20L/S |
0.95Mpa |
2940r/min |
30kw |
|
31 |
XBD10.5/20GJ-LSD |
20L/S |
1.04Mpa |
2940r/min |
45kw |
|
32 |
XBD4.0/25GJ-LSD |
25L/S |
0.4Mpa |
2940r/min |
15kw |
|
33 |
XBD5.0/25GJ-LSD |
25L/S |
0.5Mpa |
2940r/min |
22kw |
|
34 |
XBD6.0/25GJ-LSD |
25L/S |
0.6Mpa |
2940r/min |
30kw |
|
35 |
XBD7.0/25GJ-LSD |
25L/S |
0.7Mpa |
2940r/min |
37kw |
|
36 |
XBD8.0/25GJ-LSD |
25L/S |
0.80Mpa |
2940r/min |
37kw |
|
37 |
XBD8.5/25GJ-LSD |
25L/S |
0.85Mpa |
2940r/min |
45kw |
|
38 |
XBD9.0/25GJ-LSD |
25L/S |
0.90Mpa |
2940r/min |
45kw |
|
39 |
XBD10/25GJ-LSD |
25L/S |
1.00Mpa |
2940r/min |
45kw |
|
40 |
XBD3.4/30GJ-LSD |
30L/S |
0.34Mpa |
2940r/min |
18.5kw |
|
41 |
XBD4.1/30GJ-LSD |
30L/S |
0.41Mpa |
2940r/min |
22kw |
|
42 |
XBD4.5/30GJ-LSD |
30L/S |
0.45Mpa |
2940r/min |
30kw |
|
43 |
XBD5.5/30GJ-LSD |
30L/S |
0.55Mpa |
2940r/min |
30kw |
|
44 |
XBD6.0/30GJ-LSD |
30L/S |
0.60Mpa |
2940r/min |
30kw |
|
45 |
XBD6.9/30GJ-LSD |
30L/S |
0.69Mpa |
2940r/min |
37kw |
|
46 |
XBD7.5/30GJ-LSD |
30L/S |
0.75Mpa |
2940r/min |
37kw |
|
47 |
XBD8.1/30GJ-LSD |
30L/S |
0.81Mpa |
2940r/min |
45kw |
|
48 |
XBD9.0/30GJ-LSD |
30L/S |
0.90Mpa |
2940r/min |
45kw |
|
49 |
XBD3.0/35GJ-LSD |
35L/S |
0.30Mpa |
2940r/min |
18.5kw |
|
50 |
XBD3.9/35GJ-LSD |
35L/S |
0.39Mpa |
2940r/min |
22kw |
|
51 |
XBD4.8/35GJ-LSD |
35L/S |
0.48Mpa |
2940r/min |
30kw |
|
52 |
XBD5.2/35GJ-LSD |
35L/S |
0.52Mpa |
2940r/min |
30kw |
|
53 |
XBD6.0/35GJ-LSD |
35L/S |
0.60Mpa |
2940r/min |
37kw |
|
54 |
XBD6.7/35GJ-LSD |
35L/S |
0.67Mpa |
2940r/min |
37kw |
|
55 |
XBD7.5/35GJ-LSD |
35L/S |
0.75Mpa |
2940r/min |
45kw |
|
56 |
XBD8.2/35GJ-LSD |
35L/S |
0.82Mpa |
2940r/min |
45kw |
|
57 |
XBD4.0/40GJ-LSD |
40L/S |
0.40Mpa |
2940r/min |
30kw |
|
58 |
XBD4.6/40GJ-LSD |
40L/S |
0.46Mpa |
2940r/min |
30kw |
|
59 |
XBD6.0/40GJ-LSD |
40L/S |
0.60Mpa |
2940r/min |
37kw |
|
60 |
XBD6.8/40GJ-LSD |
40L/S |
0.68Mpa |
2940r/min |
45kw |
|
61 |
XBD7.0/40GJ-LSD |
40L/S |
0.70Mpa |
2940r/min |
45kw |
|
62 |
XBD8.0/40GJ-LSD |
40L/S |
0.80Mpa |
2940r/min |
45kw |
|
63 |
XBD3.2/45GJ-LSD |
45L/S |
0.32Mpa |
2940r/min |
30kw |
|
64 |
XBD4.5/45GJ-LSD |
45L/S |
0.45Mpa |
2940r/min |
37kw |
|
65 |
XBD5.5/45GJ-LSD |
45L/S |
0.55Mpa |
2940r/min |
45kw |
|
66 |
XBD6.0/45GJ-LSD |
45L/S |
0.60Mpa |
2940r/min |
45kw |
龙事达电动机消防泵组主要性能参数表二
|
序号 |
规格型号 |
流量(L/s) |
压力(MPa) |
转速(r/min) |
功率(kW) |
|
1 |
XBD11.4/5GJ-LSD |
5L/S |
1.14Mpa |
2940r/min |
15kw |
|
2 |
XBD12.5/5GJ-LSD |
5L/S |
1.25Mpa |
2940r/min |
15kw |
|
3 |
XBD13.5/5GJ-LSD |
5L/S |
1.35Mpa |
2940r/min |
15kw |
|
4 |
XBD14.5/5GJ-LSD |
5L/S |
1.45Mpa |
2940r/min |
18.5kw |
|
5 |
XBD15.6/5GJ-LSD |
5L/S |
1.56Mpa |
2940r/min |
18.5kw |
|
6 |
XBD11.7/10GJ-LSD |
10L/S |
1.17Mpa |
2940r/min |
22kw |
|
7 |
XBD13.0/10GJ-LSD |
10L/S |
1.30Mpa |
2940r/min |
22kw |
|
8 |
XBD14.3/10GJ-LSD |
10L/S |
1.43Mpa |
2940r/min |
30kw |
|
9 |
XBD16.0/10GJ-LSD |
10L/S |
1.60Mpa |
2940r/min |
30kw |
|
10 |
XBD11.0/15GJ-LSD |
15L/S |
1.10Mpa |
2940r/min |
30kw |
|
11 |
XBD12.0/15GJ-LSD |
15L/S |
1.20Mpa |
2940r/min |
30kw |
|
12 |
XBD13.0/15GJ-LSD |
15L/S |
1.30Mpa |
2940r/min |
37kw |
|
13 |
XBD14.0/15GJ-LSD |
15L/S |
1.40Mpa |
2940r/min |
37kw |
|
14 |
XBD16.0/15GJ-LSD |
15L/S |
1.60Mpa |
2940r/min |
45kw |
|
15 |
XBD11.5/20GJ-LSD |
20L/S |
1.15Mpa |
2940r/min |
45kw |
|
16 |
XBD13.8/20GJ-LSD |
20L/S |
1.38Mpa |
2940r/min |
45kw |
|
17 |
XBD14.5/20GJ-LSD |
20L/S |
1.45Mpa |
2940r/min |
55kw |
|
18 |
XBD16.3/20GJ-LSD |
20L/S |
1.63Mpa |
2940r/min |
55kw |
|
19 |
XBD11.6/25GJ-LSD |
25L/S |
1.16Mpa |
2940r/min |
55kw |
|
20 |
XBD14.0/25GJ-LSD |
25L/S |
1.40Mpa |
2940r/min |
55kw |
|
21 |
XBD16.0/25GJ-LSD |
25L/S |
1.60Mpa |
2940r/min |
75kw |
|
22 |
XBD10.2/30GJ-LSD |
30L/S |
1.02Mpa |
2940r/min |
55kw |
|
23 |
XBD11.9/30GJ-LSD |
30L/S |
1.19Mpa |
2940r/min |
75kw |
|
24 |
XBD12.5/30GJ-LSD |
30L/S |
1.25Mpa |
2940r/min |
75kw |
|
25 |
XBD13.6/30GJ-LSD |
30L/S |
1.36Mpa |
2940r/min |
75kw |
|
26 |
XBD16.0/30GJ-LSD |
30L/S |
1.60Mpa |
2940r/min |
90kw |
|
27 |
XBD9.5/35GJ-LSD |
35L/S |
0.95Mpa |
2940r/min |
55kw |
|
28 |
XBD10.3/35GJ-LSD |
35L/S |
1.03Mpa |
2940r/min |
75kw |
|
29 |
XBD11.1/35GJ-LSD |
35L/S |
1.11Mpa |
2940r/min |
75kw |
|
30 |
XBD12.8/35GJ-LSD |
35L/S |
1.28Mpa |
2940r/min |
75kw |
|
31 |
XBD13.5/35GJ-LSD |
35L/S |
1.35Mpa |
2940r/min |
90kw |
|
32 |
XBD15.0/35GJ-LSD |
35L/S |
1.50Mpa |
2940r/min |
90kw |
|
33 |
XBD9.1/40GJ-LSD |
40L/S |
0.91Mpa |
2940r/min |
75kw |
|
34 |
XBD10.3/40GJ-LSD |
40L/S |
1.03Mpa |
2940r/min |
75kw |
|
35 |
XBD11.5/40GJ-LSD |
40L/S |
1.15Mpa |
2940r/min |
75kw |
|
36 |
XBD12.8/40GJ-LSD |
40L/S |
1.28Mpa |
2940r/min |
90kw |
|
37 |
XBD14.0/40GJ-LSD |
40L/S |
1.40Mpa |
2940r/min |
90kw |
|
38 |
XBD15.8/40GJ-LSD |
40L/S |
1.58Mpa |
2940r/min |
110kw |
|
39 |
XBD6.6/45GJ-LSD |
45L/S |
0.66Mpa |
2940r/min |
45kw |
|
40 |
XBD7.7/45GJ-LSD |
45L/S |
0.77Mpa |
2940r/min |
55kw |
|
41 |
XBD8.8/45GJ-LSD |
45L/S |
0.88Mpa |
2940r/min |
75kw |
|
42 |
XBD9.9/45GJ-LSD |
45L/S |
0.99Mpa |
2940r/min |
75kw |
|
43 |
XBD11.0/45GJ-LSD |
45L/S |
1.10Mpa |
2940r/min |
90kw |
|
44 |
XBD12.0/45GJ-LSD |
45L/S |
1.20Mpa |
2940r/min |
90kw |
|
45 |
XBD13.0/45GJ-LSD |
45L/S |
1.30Mpa |
2940r/min |
110kw |
|
45 |
XBD3.6/50GJ-LSD |
50L/S |
0.36Mpa |
2940r/min |
30kw |
|
47 |
XBD4.8/50GJ-LSD |
50L/S |
0.48Mpa |
2940r/min |
37kw |
|
48 |
XBD6.0/50GJ-LSD |
50L/S |
0.60Mpa |
2940r/min |
45kw |
|
49 |
XBD7.2/50GJ-LSD |
50L/S |
0.72Mpa |
2940r/min |
55kw |
|
50 |
XBD8.4/50GJ-LSD |
50L/S |
0.84Mpa |
2940r/min |
75kw |
|
51 |
XBD9.6/50GJ-LSD |
50L/S |
0.96Mpa |
2940r/min |
75kw |
|
52 |
XBD10.8/50GJ-LSD |
50L/S |
1.08Mpa |
2940r/min |
90kw |
|
53 |
XBD12.0/50GJ-LSD |
50L/S |
1.20Mpa |
2940r/min |
90kw |
|
54 |
XBD13.2/50GJ-LSD |
50L/S |
1.32Mpa |
2940r/min |
110kw |
|
55 |
XBD4.4/55GJ-LSD |
55L/S |
0.44Mpa |
2940r/min |
37kw |
|
56 |
XBD6.5/55GJ-LSD |
55L/S |
0.65Mpa |
2940r/min |
55kw |
|
57 |
XBD8.8/55GJ-LSD |
55L/S |
0.88Mpa |
2940r/min |
75kw |
|
58 |
XBD11.0/55GJ-LSD |
55L/S |
1.10Mpa |
2940r/min |
90kw |
|
59 |
XBD13.0/55GJ-LSD |
55L/S |
1.30Mpa |
2940r/min |
110kw |
|
60 |
XBD4.0/60GJ-LSD |
60L/S |
0.40Mpa |
2940r/min |
45kw |
|
61 |
XBD5.4/60GJ-LSD |
60L/S |
0.54Mpa |
2940r/min |
55kw |
|
62 |
XBD6.7/60GJ-LSD |
60L/S |
0.67Mpa |
2940r/min |
55kw |
|
63 |
XBD8.1/60GJ-LSD |
60L/S |
0.81Mpa |
2940r/min |
75kw |
|
64 |
XBD9.5/60GJ-LSD |
60L/S |
0.95Mpa |
2940r/min |
90kw |
|
65 |
XBD10.8/60GJ-LSD |
60L/S |
1.08Mpa |
2940r/min |
110kw |
|
66 |
XBD12.2/60GJ-LSD |
60L/S |
1.22Mpa |
2940r/min |
110kw |
|
67 |
XBD4.5/65GJ-LSD |
65L/S |
0.45Mpa |
2940r/min |
45kw |
|
68 |
XBD6.8/65GJ-LSD |
65L/S |
0.68Mpa |
2940r/min |
75kw |
|
69 |
XBD9.0/65GJ-LSD |
65L/S |
0.90Mpa |
2940r/min |
90kw |
|
70 |
XBD11.5/65GJ-LSD |
65L/S |
1.15Mpa |
2940r/min |
110kw |
|
71 |
XBD4.8/70GJ-LSD |
70L/S |
0.48Mpa |
2940r/min |
55kw |
|
72 |
XBD6.4/70GJ-LSD |
70L/S |
0.64Mpa |
2940r/min |
75kw |
|
73 |
XBD8.0/70GJ-LSD |
70L/S |
0.80Mpa |
2940r/min |
90kw |
|
74 |
XBD9.6/70GJ-LSD |
70L/S |
0.96Mpa |
2940r/min |
110kw |
|
75 |
XBD4.0/75GJ-LSD |
75L/S |
0.40Mpa |
2940r/min |
55kw |
|
76 |
XBD5.0/75GJ-LSD |
75L/S |
0.50Mpa |
2940r/min |
75kw |
|
77 |
XBD7.0/75GJ-LSD |
75L/S |
0.70Mpa |
2940r/min |
90kw |
|
78 |
XBD8.0/75GJ-LSD |
75L/S |
0.80Mpa |
2940r/min |
110kw |
|
79 |
XBD4.5/80GJ-LSD |
80L/S |
0.45Mpa |
2940r/min |
75kw |
|
80 |
XBD6.0/80GJ-LSD |
80L/S |
0.60Mpa |
2940r/min |
90kw |
|
81 |
XBD7.5/80GJ-LSD |
80L/S |
0.75Mpa |
2940r/min |
110kw |
|
82 |
XBD3.0/90GJ-LSD |
90L/S |
0.30Mpa |
2940r/min |
45kw |
|
83 |
XBD4.0/90GJ-LSD |
90L/S |
0.40Mpa |
2940r/min |
75kw |
|
84 |
XBD5.0/90GJ-LSD |
90L/S |
0.50Mpa |
2940r/min |
90kw |
|
85 |
XBD6.0/90GJ-LSD |
90L/S |
0.90Mpa |
2940r/min |
90kw |
|
86 |
XBD7.0/90GJ-LSD |
90L/S |
0.70Mpa |
2940r/min |
110kw |
|
87 |
XBD8.5/90GJ-LSD |
90L/S |
0.85Mpa |
2940r/min |
110kw |
|
88 |
XBD3.2/100GJ-LSD |
100L/S |
0.32Mpa |
2940r/min |
55kw |
|
89 |
XBD4.8/100GJ-LSD |
100L/S |
0.48Mpa |
2940r/min |
75kw |
|
90 |
XBD5.5/100GJ-LSD |
100L/S |
0.55Mpa |
2940r/min |
90kw |
|
91 |
XBD6.5/100GJ-LSD |
100L/S |
0.65Mpa |
2940r/min |
110kw |
XBD立式消防泵订货须知：
一、①产品名称与立式消防泵型号②立式消防泵口径③立式消防泵扬程(m)④立式消防泵流量⑤立式消防泵电机功率(KW)⑥立式消防泵转速(r/min)⑦立式消防泵电压〔V〕⑧立式消防泵吸程(m)⑨立式消防泵是否带附件以便我们的为您正确选型。
二、若已经由设计单位选定我公司的立式消防泵产品型号，请按立式消防泵型号直接向公司销售部订购。
三、当使用的场合非常重要或环境比较复杂时,请您尽量提供设计图纸和详细参数，由我们的技术专家为您审核把关
龙事达深井泵,喷泉泵,井用潜水泵专业生产厂家 http://www.wzlsd.com
龙事达深井泵,喷泉泵,井用潜水泵专业生产厂家 http://www.wzlsd.com
