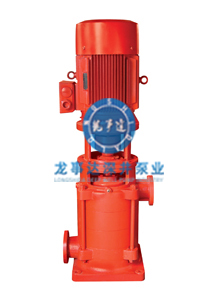

XBD-DL系列立式多级消防泵组
浏览次数：
“龙事达”XBD-DL型泵是根据对全国消防部门、设计院和各界用户进行大量调查，并根据消防工程的特点研制的新产品。泵的结构型式为单吸、多级、分段式结构，吸入口位于进水段上，呈水平方向，吐出口位于出水段上呈水平方向。泵的旋转方向，从原动机端俯视，为逆时针方向旋转。
该泵最适宜于高层建筑和民用住宅楼群、宾馆及各种其他建筑的消防工程用。该泵流量扬程选用范围大：额定流量可从10 l/s~80 l/s之间，额定出口压力可从0.28~2.67MPa之间选择。

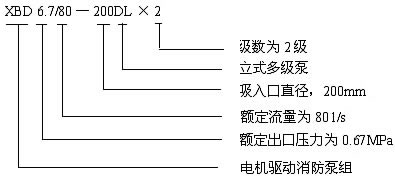

泵型号意义：
结构说明：
XBD—DL型泵的主要零件有：进水段、中段、出水段、叶轮、导叶、出水段导叶、轴、密封环、平衡鼓、平衡套、轴承、轴套、连接架等。
其结构与工作原理如下：
1）进水段、中段、导叶、出水段导叶、出水段均为铸铁制成，共同形成泵的工作室。
2）叶轮为青铜制成，内有叶片，液体沿轴向单侧进入，由于叶轮前后受压不等，必然存在轴向力，此轴向力由平衡鼓来承担，其余小部分残余轴向力由轴上端的向心推力球轴承来承担。叶轮制造时经静平衡试验。
3) 轴为经调质处理的不锈钢制成，中间装有叶轮，用键、轴套及轴套螺母固定在轴上。轴的一端安装联轴器部件，与电机直接联接。
4）平衡鼓、平衡盘为铸铁镀铬，组成平衡装置，磨损后可以更换。
5）轴套为青铜，轴封为机械密封时，采用平衡室内的压力水进行润滑和冷却，轴封为填料密封时，出水段上的3/8' 软管接头，用于把填料体中漏出的水通过软管排放到地沟里，以保持周围场地的整洁。
6）为保证泵在长时停放后仍能迅速启动，叶轮为青铜制成、 轴套、平衡套等零件采用镀铬。
7）填料起密封作用，防止大量液体漏出 。填料密封由填料体上的填料盒、填料压盖、填料环及填料等组成，少量高压水流入填料室中起水封作用。填料的松紧程度必须适当，不可压得太紧亦不可太松，以液体能一滴一滴地渗出为准，如果填料太紧，轴套容易发热，同时耗费功率，填料太松，由于液体流。

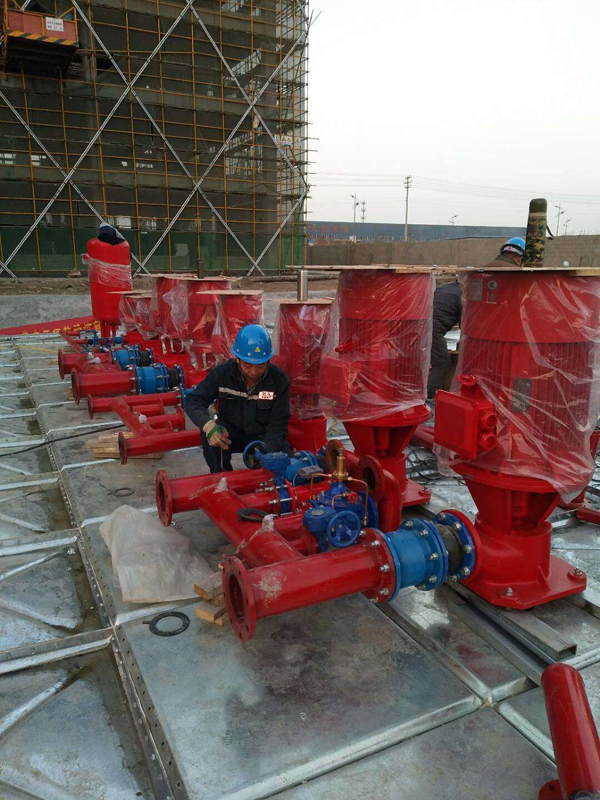

.jpg)
龙事达电动机消防泵组主要性能参数表一
|
序号 |
规格型号 |
流量(L/s) |
压力(MPa) |
转速(r/min) |
功率(kW) |
|
1 |
XBD4.0/5GJ-LSD |
5L/S |
0.4Mpa |
2940r/min |
5.5kw |
|
2 |
XBD5.5/5GJ-LSD |
5L/S |
0.55Mpa |
2940r/min |
7.5kw |
|
3 |
XBD6.7/5GJ-LSD |
5L/S |
0.67Mpa |
2940r/min |
7.5kw |
|
4 |
XBD7.2/5GJ-LSD |
5L/S |
0.72Mpa |
2940r/min |
7.5kw |
|
5 |
XBD8.0/5GJ-LSD |
5L/S |
0.8Mpa |
2940r/min |
11kw |
|
6 |
XBD9.3/5GJ-LSD |
5L/S |
0.93Mpa |
2940r/min |
11kw |
|
7 |
XBD10.5/5GJ-LSD |
5L/S |
1.04Mpa |
2940r/min |
15kw |
|
8 |
XBD4.0/10GJ-LSD |
10L/S |
0.4Mpa |
2940r/min |
7.5kw |
|
9 |
XBD5.0/10GJ-LSD |
10L/S |
0.5Mpa |
2940r/min |
11kw |
|
10 |
XBD6.5/10GJ-LSD |
10L/S |
0.65Mpa |
2940r/min |
15kw |
|
11 |
XBD8.0/10GJ-LSD |
10L/S |
0.8Mpa |
2940r/min |
18.5kw |
|
12 |
XBD9.1/10GJ-LSD |
10L/S |
0.91Mpa |
2940r/min |
18.5kw |
|
13 |
XBD10.5/10GJ-LSD |
10L/S |
1.04Mpa |
2940r/min |
22kw |
|
14 |
XBD3.6/15GJ-LSD |
15L/S |
0.36Mpa |
2940r/min |
11kw |
|
15 |
XBD4.0/15GJ-LSD |
15L/S |
0.40Mpa |
2940r/min |
11kw |
|
16 |
XBD4.8/15GJ-LSD |
15L/S |
0.48Mpa |
2940r/min |
15kw |
|
17 |
XBD5.0/15GJ-LSD |
15L/S |
0.50Mpa |
2940r/min |
15kw |
|
18 |
XBD6.0/15GJ-LSD |
15L/S |
0.60Mpa |
2940r/min |
18.5kw |
|
19 |
XBD7.2/15GJ-LSD |
15L/S |
0.72Mpa |
2940r/min |
22kw |
|
20 |
XBD8.4/15GJ-LSD |
15L/S |
0.84Mpa |
2940r/min |
30kw |
|
21 |
XBD9.6/15GJ-LSD |
15L/S |
0.96Mpa |
2940r/min |
30kw |
|
22 |
XBD10.5/15GJ-LSD |
15L/S |
1.05Mpa |
2940r/min |
30kw |
|
23 |
XBD3.5/20GJ-LSD |
20L/S |
0.35Mpa |
2940r/min |
15kw |
|
24 |
XBD4.6/20GJ-LSD |
20L/S |
0.46Mpa |
2940r/min |
15kw |
|
25 |
XBD5.0/20GJ-LSD |
20L/S |
0.5Mpa |
2940r/min |
18.5kw |
|
26 |
XBD5.8/20GJ-LSD |
20L/S |
0.58Mpa |
2940r/min |
22kw |
|
27 |
XBD6.2/20GJ-LSD |
20L/S |
0.62Mpa |
2940r/min |
22kw |
|
28 |
XBD7.5/20GJ-LSD |
20L/S |
0.75Mpa |
2940r/min |
30kw |
|
29 |
XBD8.5/20GJ-LSD |
20L/S |
0.85Mpa |
2940r/min |
30kw |
|
30 |
XBD9.5/20GJ-LSD |
20L/S |
0.95Mpa |
2940r/min |
30kw |
|
31 |
XBD10.5/20GJ-LSD |
20L/S |
1.04Mpa |
2940r/min |
45kw |
|
32 |
XBD4.0/25GJ-LSD |
25L/S |
0.4Mpa |
2940r/min |
15kw |
|
33 |
XBD5.0/25GJ-LSD |
25L/S |
0.5Mpa |
2940r/min |
22kw |
|
34 |
XBD6.0/25GJ-LSD |
25L/S |
0.6Mpa |
2940r/min |
30kw |
|
35 |
XBD7.0/25GJ-LSD |
25L/S |
0.7Mpa |
2940r/min |
37kw |
|
36 |
XBD8.0/25GJ-LSD |
25L/S |
0.80Mpa |
2940r/min |
37kw |
|
37 |
XBD8.5/25GJ-LSD |
25L/S |
0.85Mpa |
2940r/min |
45kw |
|
38 |
XBD9.0/25GJ-LSD |
25L/S |
0.90Mpa |
2940r/min |
45kw |
|
39 |
XBD10/25GJ-LSD |
25L/S |
1.00Mpa |
2940r/min |
45kw |
|
40 |
XBD3.4/30GJ-LSD |
30L/S |
0.34Mpa |
2940r/min |
18.5kw |
|
41 |
XBD4.1/30GJ-LSD |
30L/S |
0.41Mpa |
2940r/min |
22kw |
|
42 |
XBD4.5/30GJ-LSD |
30L/S |
0.45Mpa |
2940r/min |
30kw |
|
43 |
XBD5.5/30GJ-LSD |
30L/S |
0.55Mpa |
2940r/min |
30kw |
|
44 |
XBD6.0/30GJ-LSD |
30L/S |
0.60Mpa |
2940r/min |
30kw |
|
45 |
XBD6.9/30GJ-LSD |
30L/S |
0.69Mpa |
2940r/min |
37kw |
|
46 |
XBD7.5/30GJ-LSD |
30L/S |
0.75Mpa |
2940r/min |
37kw |
|
47 |
XBD8.1/30GJ-LSD |
30L/S |
0.81Mpa |
2940r/min |
45kw |
|
48 |
XBD9.0/30GJ-LSD |
30L/S |
0.90Mpa |
2940r/min |
45kw |
|
49 |
XBD3.0/35GJ-LSD |
35L/S |
0.30Mpa |
2940r/min |
18.5kw |
|
50 |
XBD3.9/35GJ-LSD |
35L/S |
0.39Mpa |
2940r/min |
22kw |
|
51 |
XBD4.8/35GJ-LSD |
35L/S |
0.48Mpa |
2940r/min |
30kw |
|
52 |
XBD5.2/35GJ-LSD |
35L/S |
0.52Mpa |
2940r/min |
30kw |
|
53 |
XBD6.0/35GJ-LSD |
35L/S |
0.60Mpa |
2940r/min |
37kw |
|
54 |
XBD6.7/35GJ-LSD |
35L/S |
0.67Mpa |
2940r/min |
37kw |
|
55 |
XBD7.5/35GJ-LSD |
35L/S |
0.75Mpa |
2940r/min |
45kw |
|
56 |
XBD8.2/35GJ-LSD |
35L/S |
0.82Mpa |
2940r/min |
45kw |
|
57 |
XBD4.0/40GJ-LSD |
40L/S |
0.40Mpa |
2940r/min |
30kw |
|
58 |
XBD4.6/40GJ-LSD |
40L/S |
0.46Mpa |
2940r/min |
30kw |
|
59 |
XBD6.0/40GJ-LSD |
40L/S |
0.60Mpa |
2940r/min |
37kw |
|
60 |
XBD6.8/40GJ-LSD |
40L/S |
0.68Mpa |
2940r/min |
45kw |
|
61 |
XBD7.0/40GJ-LSD |
40L/S |
0.70Mpa |
2940r/min |
45kw |
|
62 |
XBD8.0/40GJ-LSD |
40L/S |
0.80Mpa |
2940r/min |
45kw |
|
63 |
XBD3.2/45GJ-LSD |
45L/S |
0.32Mpa |
2940r/min |
30kw |
|
64 |
XBD4.5/45GJ-LSD |
45L/S |
0.45Mpa |
2940r/min |
37kw |
|
65 |
XBD5.5/45GJ-LSD |
45L/S |
0.55Mpa |
2940r/min |
45kw |
|
66 |
XBD6.0/45GJ-LSD |
45L/S |
0.60Mpa |
2940r/min |
45kw |
龙事达电动机消防泵组主要性能参数表二
|
序号 |
规格型号 |
流量(L/s) |
压力(MPa) |
转速(r/min) |
功率(kW) |
|
1 |
XBD11.4/5GJ-LSD |
5L/S |
1.14Mpa |
2940r/min |
15kw |
|
2 |
XBD12.5/5GJ-LSD |
5L/S |
1.25Mpa |
2940r/min |
15kw |
|
3 |
XBD13.5/5GJ-LSD |
5L/S |
1.35Mpa |
2940r/min |
15kw |
|
4 |
XBD14.5/5GJ-LSD |
5L/S |
1.45Mpa |
2940r/min |
18.5kw |
|
5 |
XBD15.6/5GJ-LSD |
5L/S |
1.56Mpa |
2940r/min |
18.5kw |
|
6 |
XBD11.7/10GJ-LSD |
10L/S |
1.17Mpa |
2940r/min |
22kw |
|
7 |
XBD13.0/10GJ-LSD |
10L/S |
1.30Mpa |
2940r/min |
22kw |
|
8 |
XBD14.3/10GJ-LSD |
10L/S |
1.43Mpa |
2940r/min |
30kw |
|
9 |
XBD16.0/10GJ-LSD |
10L/S |
1.60Mpa |
2940r/min |
30kw |
|
10 |
XBD11.0/15GJ-LSD |
15L/S |
1.10Mpa |
2940r/min |
30kw |
|
11 |
XBD12.0/15GJ-LSD |
15L/S |
1.20Mpa |
2940r/min |
30kw |
|
12 |
XBD13.0/15GJ-LSD |
15L/S |
1.30Mpa |
2940r/min |
37kw |
|
13 |
XBD14.0/15GJ-LSD |
15L/S |
1.40Mpa |
2940r/min |
37kw |
|
14 |
XBD16.0/15GJ-LSD |
15L/S |
1.60Mpa |
2940r/min |
45kw |
|
15 |
XBD11.5/20GJ-LSD |
20L/S |
1.15Mpa |
2940r/min |
45kw |
|
16 |
XBD13.8/20GJ-LSD |
20L/S |
1.38Mpa |
2940r/min |
45kw |
|
17 |
XBD14.5/20GJ-LSD |
20L/S |
1.45Mpa |
2940r/min |
55kw |
|
18 |
XBD16.3/20GJ-LSD |
20L/S |
1.63Mpa |
2940r/min |
55kw |
|
19 |
XBD11.6/25GJ-LSD |
25L/S |
1.16Mpa |
2940r/min |
55kw |
|
20 |
XBD14.0/25GJ-LSD |
25L/S |
1.40Mpa |
2940r/min |
55kw |
|
21 |
XBD16.0/25GJ-LSD |
25L/S |
1.60Mpa |
2940r/min |
75kw |
|
22 |
XBD10.2/30GJ-LSD |
30L/S |
1.02Mpa |
2940r/min |
55kw |
|
23 |
XBD11.9/30GJ-LSD |
30L/S |
1.19Mpa |
2940r/min |
75kw |
|
24 |
XBD12.5/30GJ-LSD |
30L/S |
1.25Mpa |
2940r/min |
75kw |
|
25 |
XBD13.6/30GJ-LSD |
30L/S |
1.36Mpa |
2940r/min |
75kw |
|
26 |
XBD16.0/30GJ-LSD |
30L/S |
1.60Mpa |
2940r/min |
90kw |
|
27 |
XBD9.5/35GJ-LSD |
35L/S |
0.95Mpa |
2940r/min |
55kw |
|
28 |
XBD10.3/35GJ-LSD |
35L/S |
1.03Mpa |
2940r/min |
75kw |
|
29 |
XBD11.1/35GJ-LSD |
35L/S |
1.11Mpa |
2940r/min |
75kw |
|
30 |
XBD12.8/35GJ-LSD |
35L/S |
1.28Mpa |
2940r/min |
75kw |
|
31 |
XBD13.5/35GJ-LSD |
35L/S |
1.35Mpa |
2940r/min |
90kw |
|
32 |
XBD15.0/35GJ-LSD |
35L/S |
1.50Mpa |
2940r/min |
90kw |
|
33 |
XBD9.1/40GJ-LSD |
40L/S |
0.91Mpa |
2940r/min |
75kw |
|
34 |
XBD10.3/40GJ-LSD |
40L/S |
1.03Mpa |
2940r/min |
75kw |
|
35 |
XBD11.5/40GJ-LSD |
40L/S |
1.15Mpa |
2940r/min |
75kw |
|
36 |
XBD12.8/40GJ-LSD |
40L/S |
1.28Mpa |
2940r/min |
90kw |
|
37 |
XBD14.0/40GJ-LSD |
40L/S |
1.40Mpa |
2940r/min |
90kw |
|
38 |
XBD15.8/40GJ-LSD |
40L/S |
1.58Mpa |
2940r/min |
110kw |
|
39 |
XBD6.6/45GJ-LSD |
45L/S |
0.66Mpa |
2940r/min |
45kw |
|
40 |
XBD7.7/45GJ-LSD |
45L/S |
0.77Mpa |
2940r/min |
55kw |
|
41 |
XBD8.8/45GJ-LSD |
45L/S |
0.88Mpa |
2940r/min |
75kw |
|
42 |
XBD9.9/45GJ-LSD |
45L/S |
0.99Mpa |
2940r/min |
75kw |
|
43 |
XBD11.0/45GJ-LSD |
45L/S |
1.10Mpa |
2940r/min |
90kw |
|
44 |
XBD12.0/45GJ-LSD |
45L/S |
1.20Mpa |
2940r/min |
90kw |
|
45 |
XBD13.0/45GJ-LSD |
45L/S |
1.30Mpa |
2940r/min |
110kw |
|
45 |
XBD3.6/50GJ-LSD |
50L/S |
0.36Mpa |
2940r/min |
30kw |
|
47 |
XBD4.8/50GJ-LSD |
50L/S |
0.48Mpa |
2940r/min |
37kw |
|
48 |
XBD6.0/50GJ-LSD |
50L/S |
0.60Mpa |
2940r/min |
45kw |
|
49 |
XBD7.2/50GJ-LSD |
50L/S |
0.72Mpa |
2940r/min |
55kw |
|
50 |
XBD8.4/50GJ-LSD |
50L/S |
0.84Mpa |
2940r/min |
75kw |
|
51 |
XBD9.6/50GJ-LSD |
50L/S |
0.96Mpa |
2940r/min |
75kw |
|
52 |
XBD10.8/50GJ-LSD |
50L/S |
1.08Mpa |
2940r/min |
90kw |
|
53 |
XBD12.0/50GJ-LSD |
50L/S |
1.20Mpa |
2940r/min |
90kw |
|
54 |
XBD13.2/50GJ-LSD |
50L/S |
1.32Mpa |
2940r/min |
110kw |
|
55 |
XBD4.4/55GJ-LSD |
55L/S |
0.44Mpa |
2940r/min |
37kw |
|
56 |
XBD6.5/55GJ-LSD |
55L/S |
0.65Mpa |
2940r/min |
55kw |
|
57 |
XBD8.8/55GJ-LSD |
55L/S |
0.88Mpa |
2940r/min |
75kw |
|
58 |
XBD11.0/55GJ-LSD |
55L/S |
1.10Mpa |
2940r/min |
90kw |
|
59 |
XBD13.0/55GJ-LSD |
55L/S |
1.30Mpa |
2940r/min |
110kw |
|
60 |
XBD4.0/60GJ-LSD |
60L/S |
0.40Mpa |
2940r/min |
45kw |
|
61 |
XBD5.4/60GJ-LSD |
60L/S |
0.54Mpa |
2940r/min |
55kw |
|
62 |
XBD6.7/60GJ-LSD |
60L/S |
0.67Mpa |
2940r/min |
55kw |
|
63 |
XBD8.1/60GJ-LSD |
60L/S |
0.81Mpa |
2940r/min |
75kw |
|
64 |
XBD9.5/60GJ-LSD |
60L/S |
0.95Mpa |
2940r/min |
90kw |
|
65 |
XBD10.8/60GJ-LSD |
60L/S |
1.08Mpa |
2940r/min |
110kw |
|
66 |
XBD12.2/60GJ-LSD |
60L/S |
1.22Mpa |
2940r/min |
110kw |
|
67 |
XBD4.5/65GJ-LSD |
65L/S |
0.45Mpa |
2940r/min |
45kw |
|
68 |
XBD6.8/65GJ-LSD |
65L/S |
0.68Mpa |
2940r/min |
75kw |
|
69 |
XBD9.0/65GJ-LSD |
65L/S |
0.90Mpa |
2940r/min |
90kw |
|
70 |
XBD11.5/65GJ-LSD |
65L/S |
1.15Mpa |
2940r/min |
110kw |
|
71 |
XBD4.8/70GJ-LSD |
70L/S |
0.48Mpa |
2940r/min |
55kw |
|
72 |
XBD6.4/70GJ-LSD |
70L/S |
0.64Mpa |
2940r/min |
75kw |
|
73 |
XBD8.0/70GJ-LSD |
70L/S |
0.80Mpa |
2940r/min |
90kw |
|
74 |
XBD9.6/70GJ-LSD |
70L/S |
0.96Mpa |
2940r/min |
110kw |
|
75 |
XBD4.0/75GJ-LSD |
75L/S |
0.40Mpa |
2940r/min |
55kw |
|
76 |
XBD5.0/75GJ-LSD |
75L/S |
0.50Mpa |
2940r/min |
75kw |
|
77 |
XBD7.0/75GJ-LSD |
75L/S |
0.70Mpa |
2940r/min |
90kw |
|
78 |
XBD8.0/75GJ-LSD |
75L/S |
0.80Mpa |
2940r/min |
110kw |
|
79 |
XBD4.5/80GJ-LSD |
80L/S |
0.45Mpa |
2940r/min |
75kw |
|
80 |
XBD6.0/80GJ-LSD |
80L/S |
0.60Mpa |
2940r/min |
90kw |
|
81 |
XBD7.5/80GJ-LSD |
80L/S |
0.75Mpa |
2940r/min |
110kw |
|
82 |
XBD3.0/90GJ-LSD |
90L/S |
0.30Mpa |
2940r/min |
45kw |
|
83 |
XBD4.0/90GJ-LSD |
90L/S |
0.40Mpa |
2940r/min |
75kw |
|
84 |
XBD5.0/90GJ-LSD |
90L/S |
0.50Mpa |
2940r/min |
90kw |
|
85 |
XBD6.0/90GJ-LSD |
90L/S |
0.90Mpa |
2940r/min |
90kw |
|
86 |
XBD7.0/90GJ-LSD |
90L/S |
0.70Mpa |
2940r/min |
110kw |
|
87 |
XBD8.5/90GJ-LSD |
90L/S |
0.85Mpa |
2940r/min |
110kw |
|
88 |
XBD3.2/100GJ-LSD |
100L/S |
0.32Mpa |
2940r/min |
55kw |
|
89 |
XBD4.8/100GJ-LSD |
100L/S |
0.48Mpa |
2940r/min |
75kw |
|
90 |
XBD5.5/100GJ-LSD |
100L/S |
0.55Mpa |
2940r/min |
90kw |
|
91 |
XBD6.5/100GJ-LSD |
100L/S |
0.65Mpa |
2940r/min |
110kw |
